Posted:
27 January 2026, 03:28
ID: 1727079
$500/piece
Delivery terms:
EXW
Shenzhen
Kelly Hu
manager
Description
Model Number: 5o105654048NK
Frequency Range: 4.0~8.0GHz
Insertion Loss: 0.6dB
Isolation: 16dB
VSWR: 1.4
Forward Power:300W
Reverse Power:300W
Connector Type: N Female
Temperature: -30 ~ +70℃
Dimension: 56*54.3*36mm
RF power amplifier protection.
Digital, Satellite, Mobile Communication.
Medical, Communication, Security.
Military, Space and Commercial applications.
is a modern high-tech enterprise specializing in passive RF and microwave components, integrating R&D, production, and sales. The company focuses on technological innovation as its core and relies on technology leadership.
The company's main products: Microwave RF isolators, circulators, coaxial terminations, coaxial attenuators, power splitters/dividers, waveguide to coaxial adapters, directional couplers, RF filters, and duplexers/multiplexers and other microwave passive components.
Characteristics
Product code
5o105654048NK
Condition
New
The owner of the ad has the most up-to-date information.
Similar ads
2
Price
$60,000/pc
Concrete Mixer LT4000
Description:
The autonomous concrete mixer LT4000 is the ideal solution for construction sites. Forget about waiting for deliveries from concrete plants, queues, and delays. Prepare concrete directly on-site and take full control of the process.
Main Features:
* Drum...
17 May 2025
Wholesale price
from €500/cu m
Our company supplies birch and alder plywood. Birch plywood is considered the highest quality in furniture production. Birch plywood has very high strength and very beautiful wood structure. That’s why many of furniture producers choose birch plywood. Alder plywood is popular in building.
Sheet...
23 Sep 2024
4
Price
€2,750/t DAP
Key Specifications/ Special Features:
Copper wire scrap: Wire diameter: 0.20mm, 0.25mm, 0.30mm Weight: 3kg, 5kg, 7kg, 15kg, 20kg Purity:99.9% min Packaging Details:50kg per bale , 1000kg per bundle , or Customer Specific Requirements.
Tensile strength: 1000 N/mm2, 900 N/mm2, 500 N/mm2, 450...
24 Jun 2024
Kelly Hu
manager
Other company ads
4
Price
$150/pc EXW wholesale $80-120/pc
5o.com, LLC, CN
Model Number: 5o0156630150170
Frequency Range:150~170MHz
Insertion Loss: 0.6dB
Isolation:18dB
VSWR:1.3
Forward Power:300W
Reverse...
Price
€10/pc EXW
5o.com, LLC, CN, 321 km
Model Number: 5o21503NJ
Frequency Range: DC-3GHz
Power:5W
VSWR:1.15
Connector Type: N-J
Impedance:50Ω
Application
Wireless communication system....
Price
€10/pc EXW
5o.com, LLC, CN, 623 km
Model Number: 5o60WR75098415SK
Frequency Range: 9.84 ~ 15.0GHz
Insertion Loss: 0.2dB
VSWR: 1.15
Connector Type(Waveguide): WR75(BJ120)
Connector...
2
Price
€20/pc EXW
5o.com, LLC, CN, 737 km
When it comes to protecting sensitive RF components, our high-performance Drop-In Isolator (Model: 5o0125310) stands out as a robust solution....
2
Price
€20/pc EXW
5o.com, LLC, CN, 483 km
Engineered for seamless transition between waveguide and coaxial technologies, our WR90 (BJ100) Waveguide to Coaxial Adapter (Model: 5o60WR900)...
See more ads in the category Communications and telecommunications, other
Contacts
Representative
Kelly Hu
Manager
Contacts
Say, that you found an ad on Flagma
Safety rules: Do not agree to prepayment if you are not sure about the reliability of the user.
Write a message
5o.com, LLC
Kelly Hu, Manager

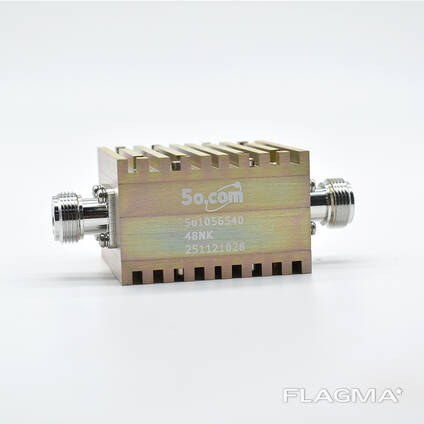

High Power 300W C Band 4.0 to 8.0GHz RF Coaxial Circulator
